## Random Number Generator of an accumulative type

In this article I am going to tell about the operating principles and

characteristic properties of Random Number Generator (RNG) used in the

DiskCryptor.

RNG - this is a critically important security element of a disk

encryption system, as it generates the keys with which data is

encrypted. And it is exactly the RNG that is often a weak spot or a

backdoor in a different sorts of proprietary and government certified

encryption systems, because precision of an encryption algorithm's

implementation and the data storage methods can be easily examined even

without having an access to the source code, but RNG, however, is much

more difficult to analyze.

It is possible to create a one-way strong RNG that will allow for a

person, knowing a certain secret, to recover all the keys that were

generated by it and to consequently compromise encrypted data. A good

example of such case - the

Dual_EC_DRBG standard,

which has backdoor and is used in Windows, since Vista SP1.

## The creation purposes and the objectives performed

The DiskCryptor's RNG purpose is to perform the following two

objectives: generation of encryption keys and generation of a large

volume of random data for disk wiping algorithms. For the first

objective it is necessary to provide as big strength reserve as

possible, and below are the key generation requirements that RNG has to

meet:

- Issue of numbers, statistically indistinguishable from random ones.
- Impossibility of an algorithmic prediction of the sequences being

generated or the ones generated earlier even with the availability

of a large amount of random numbers made in the past. - The requirement No.2 has to retain its maximum possible integrity

state even when an attacker knows an internal state of the

generator. - It is imperative to provide a maximum possible strength reserve that

exceeds attacker's capabilities by manifold. - Simple and clear, even for a non-professional, architecture and

operating principles.

For the second objective, when generating a large volume of random

numbers, requirements for RNG differ:

- Issue of numbers, statistically indistinguishable from random ones.
- Impossibility to predict sequences being generated without knowing

an internal state of the generator. - Maximum possible performance.

## RNG for key generation

RNG for key generation that is used in the DiskCryptor, belongs to the

accumulative RNG type with multiple sources of entropy. RNG of this type

accumulates minor entropy values over a long period of time, following

that it is capable of issuing a truly random sequence having size of up

to 640 bytes, afterwards, pseudo-random sequences will follow up until a

new accumulation of entropy.

As a basis for the RNG architecture,

SHA-512 hash function and

AES-256

block cipher are taken. The choice of this function is made because of

its simplicity, good performance and high reliability, though less

stringent requirements are set for hash in this case than, for example,

when using it for the digital

signatures. The hash

function used, has to have the following properties:

- Statistically random output on casually-random input data.
- Dependence of each output bit of hash on all the input bits. On a

change of one bit on an entry, no less than a half of output bits

has to alter. - One-sidedness. Recovery of an entry data based on its hash value has

to be impossible. This characteristic is very desirable, but a part

of RNG properties are retained even without its presence.

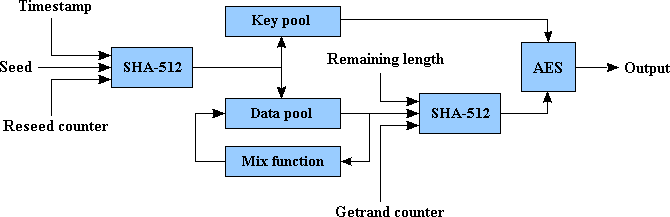

Simplified block scheme of RNG looks the following way:

## Accumulation of random numbers

This is being done by hashing a seed together with a timestamp and a

reseed counter. Adding both timestamp and reseed counter prevents

generation of identical hash values on a same seed. The obtained hash is

added to the random number pool by means of addition with respect to

base 28 with existing content of the pool, and that creates a dependence

of content of the pool on all random number additions made earlier.

The pool has the size of 640 bytes, which allows for the accumulation of

the maximum of 5120 bits of entropy. On one addition of a seed, the size

of entropy increases by the maximum of 512 bits, therefore the SHA-512

hash size requires no less then 10 reseeds, for fully filling up the

pool. In addition to having the big pool for data accumulation, RNG also

has the second one, the keys pool. This pool has the size of 256 bits

and it is never being outputted, even indirectly, but is used as a key

for the AES-256, with which output data is encrypted.

## Mixing up the pool

Mixing up the pool - this is the operation that is performed with the

objective to make all the bits in the pool to become dependent on each

other. The goal of mixing - is to create the reliance of each bit being

generated, on all the content of the pool, but at the same time not to

decrease the maximum entropy, as would have happened on hashing the

whole pool at the moment of issuing random numbers. The mixing operation

has a characteristic of being one-sided, meaning that, knowing a state

of the pool after a mixing, it is impossible to restore its previous

state. This characteristic is directly based on the corresponding

properties of the SHA-512 hash.

Mixing is being done with the help of mix function (the rnd_pool_mix

function in the source code). During the mixing process, the pool is

being divided into 10 parts, each having the size of 64 bytes, and to

each part, a value of SHA-512 hash of all the pool content is being

added. This process can be presented as follows:

`pool`

_{0}` = pool`

_{0}` + SHA(pool`

_{0}` || pool`

_{1}` ... pool`

_{n}`)`

`pool`

_{1}` = pool`

_{1}` + SHA(pool`

_{0}` + SHA(pool`

_{0}` || pool`

_{1}` ... pool`

_{n}`) || pool`

_{1}` ... pool`

_{n}`)`

`...`

Mixing is performed in either of the following three cases: before

generation of a random byte sequence, after it, and in the case when

entire content of the pool has been expended in the process of

generation, and issuing of data has gone to a second round. The first

mixing is required for the creation of dependency of output data on all

the pool content. The second mixing protects the generated keys from an

attacker who has an opportunity to read the contents of memory after

generation (for example with the Cold

Boot attack). The third

mixing allows for the use of new entropy that is being added to the pool

in the process of random number generation, and it also creates an

additional remoteness between the already generated and the subsequent

random numbers.

## Random numbers retrieval

The random numbers retrieval function receives generator's output data

from its internal state. Retrieval of random numbers is done by taking

the SHA-512 hash from a part of the pool, random generated blocks

counter (getrand counter), and a size of a remaining part of a requested

data (remaining length), and encryption of an obtained hash with AES-256

key, received from the keys pool. Getrand counter and remaining length

are needed to eliminate the possibility of generation of two identical

output blocks on a same content of the pool. A situation having the same

content in the pool is an unlikely one, due to its mixing, nevertheless,

I believe that an additional safety measure would only be of a benefit.

The generation process can be presented as follows:

`rand`

_{0}` = SHA(pool`

_{0}` || counter || length)`

`rand`

_{1}` = SHA(pool`

_{1}` || counter + 1 || length - 64)`

`...`

`rand`

_{n}` = SHA(pool`

_{n}` || counter + n || length - 64*n)`

In the process of retrieval of every 512 bits of data, twice, a

gathering of additional entropy takes place. After reaching the maximum

possible n (having the 640 bytes pool size, it equals 10), pool mixing

takes place, and the subsequently issued data will not be truly random,

but partially pseudorandom. The strength of this construction to

withstand a risk of being compromised, having minor values of an

effective entropy (that is, pseudorandom numbers), is based on the total

strength of SHA-512 and AES-256, that gives a strength reserve even in a

case of fully breaking of one of these cryptoprimitives. The source code

for number retrieval from the pool, you can find in the function

rnd_get_bytes.

## Sources of entropy

Sources of entropy, - is the RNG element, the importance of which is

hard to overvalue. It is precisely these sources that are responsible

for an effective entropy, which is accumulated by RNG, and consequently,

an effective entropy of generated keys. Howsoever good the entropy

retrieval algorithm might be, but a poor source of entropy can place the

RNG security in jeopardy. And vice versa, - a good source of randomness,

in some cases, may "stretch" the security of a weak retrieval algorithm.

Sources of entropy should be approached to with a much greater paranoia,

than the RNG algorithm, as the strength of these sources is practically

non-provable and can vary by many magnitudes on different assumptions

about an attacker's resources and potential. So therefore, it is prudent

to follow the rule of "You can't spoil a good thing. Plenty is no

plague." And thus, it is best to use as many different sources of

randomness, as possible. Adding another additional source, will not

lower the strength, but only might to increase it, in certain cases.

Consequently, what is needed here, is - redundancy, more redundancy, and

even more redundancy.

Having redundancy, - is a very good thing, but one should not rely on an

empirical value of its size, as it just may happen, that an attacker may

be able to read the majority of entropy sources used, and the remaining

inaccessible sources he may be capable to pick up or predict. Therefore,

there is the need to have at least a simplest numerical basis for an

effective size of entropy in relation to an attacker, who has various

capabilities. For the start, we should define what kind of leverage a

hypothetical attacker may have.

- The simplest version, - is when an
*attacker has absolutely no*, he

access to a computer in a moment of random number generation

also does not know the exact moment of generation, nor has an

information about the state of a system on that moment either. This

model corresponds to the most likely kind of an attacker, and this

model has the maximum possible safety of all the sources of entropy.

Later on, one of the versions of strength calculation will be given

with regard to this model. - A more complicated version, - is when an
*attacker has a partial*, and when he

access to a computer and knows an approximate (within the

milliseconds range) time of random number generation

also has the access to a part of system information on that moment.

Practically, this model corresponds to a potential that an attacker

may have in a multi-user environment, when he has no administrative

privileges in there. Later on, strength calculation for this model

will also be presented, and exactly these kind of numbers should be

taken as a basis for giving an assessment for having a minimum

acceptable strength. - And finally the third version, - when an
*attacker has a full access*. It is obvious, that it is impossible to be protected

to a system

in such a case, as an attacker can take control of and to replace

any sources of entropy, and also can have a direct influence upon

internal state of the RNG, or to replace the RNG completely with his

own one. This version corresponds to a kind of an attacker, which

has administrative privileges on a system that he is attacking, and

there is no, nor there can be a defense from him. Therefore, under

no circumstances you must generate keys or work with a confidential

data on a system that can be controlled by someone other than you.

Otherwise, your security is literally hairbreadth to none.

The sources of entropy that are used in the DiskCryptor's RNG are

separated into two types: fast sources, working in the kernel-mode, and

slow sources, working in the user-mode. The first ones a residing

together with the RNG inside the driver, and the second ones reside in

the `dcapi.dll`

, and the data from them is periodically transmitted to

the driver. First, let us examine a set of functions of the kernel, used

as a kernel-mode sources of randomness. Their main property is

inaccessibility of their direct reading by an attacker that has a

limited access to a system, but a portion of their bits may be

predictable, and so in the table that is presented below there are two

values for each source: minimum and maximum. The values are true on a

condition that the use of these sources is no frequent than 10 times per

second, on a more numerous use an effective entropy of each call

decreases.

Function | Dependency | Minimum entropy | Maximum entropy |
---|---|---|---|

PsGetCurrentProcess | On the process invoking reseed | 0 | 2 |

PsGetCurrentProcessId | On the process invoking reseed | 0 | 2 |

KeGetCurrentThread | On the thread invoking reseed | 1 | 4 |

PsGetCurrentThreadId | On the thread invoking reseed | 0 | 2 |

KeGetCurrentProcessorNumber | On the number of current processor | 0 | 2 |

KeQueryInterruptTime | On all interrupts in the system | 8 | 16 |

KeQueryPriorityThread | On the thread priority | 0 | 1 |

KeQueryPerformanceCounter | RTC (Real Time Clock) | 4 | 8 |

__rdtsc | CPU timestamp counter | 16 | 24 |

ExGetPreviousMode | Previous mode of the thread execution | 0 | 1 |

IoGetInitialStack | Initial stack of the thread | 0 | 1 |

IoGetTopLevelIrp | Last IRP (Input/output Request Packet) in the queue | 0 | 2 |

MmQuerySystemSize | Size of the system memory | 0 | ? |

ExUuidCreate | PRNG of the Windows kernel | 8 (?) | ? |

RtlRandom | Predictable value, but may be altered by other drivers | 0 | ? |

KeQueryTickCount | Number of ticks of the counter from the moment of system's boot | 2 | 4 |

IoGetStackLimits | Stack limits for the current thread | 0 | ? |

Total: | 39 | 75 |

Thus, we can see that on an average we get 39-75 random bits on one

reseed operation. This is not enough if reseed is carried out once,

therefore DiskCryptor retrieves entropy from fast functions in the

moment of a first thousand disk I/O operations after the system's start.

Even if we are to assume that the time of I/O operations execution is

practically constant, then on the minimum we would have no less than 1

bit of entropy per reseed (because predicting the time of reading data

from a disk with the nanosecond precision looks like a fiction), that in

total would amount to no less than 1000 bits of effective entropy right

after the system's boot. Subsequently, the fast source of entropy is

being used less, and namely in the moment of some not very frequent

system events, and in the moment of random number generation.

Besides using fast kernel-mode entropy sources, RNG also uses slow

user-mode sources. Several API functions and also user actions (mouse

movement, pressing of keys) are used as user-mode sources. At the start

of the program, Windows's RNG CryptoAPI CryptGenRandom function is used

once, as the source of entropy. Recent studies show that this RNG is

weak and in a protracted period of time it issues pseudorandom numbers,

as it rarely replenishes entropy, and thus using it more than once is

not justified. It is difficult for me to name the value of its effective

entropy, but apparently it has to be no less than 32 bits, otherwise RNG

would have had a very short period, which can be discovered with a

simplest of tests. Mouse movements are used as the source of entropy the

whole time the program is working. This is a very good source of entropy

even on its own accord, as the time between the two mouse communications

is wide in comparison with CPU clocks, and even from this time alone it

is possible to confidently gather 16 random bits at a time. Extra 2-3

random bits can be taken off from mouse cursor coordinates and presses

of mouse keys. Keyboard keys presses in the program's window are also

used by RNG, and both the time of press and release, as well as the

key's code are sent to it. This guarantees, that even in the absence of

other sources of randomness, the effective entropy of the keys being

generated, cannot be less than the entropy of your password, as the

password is also used in key generation. It is also important, that

these sources of entropy are inaccessible for reading by a local

attacker with limited privileges, since if attacker's privileges are

high enough to intercept keyboard presses, then encryption loses all its

meaning.

In addition to one-time and persistent sources of entropy described

above, the program also uses recurrent entropy sources, information from

which is collected every 5 seconds as long as the program works. The

list of functions used, and approximate value of amount of random bits

receive from them, is presented in the table below.

Function | Minimum entropy | Maximum entropy | Inaccessible to local attacker |
---|---|---|---|

GetDesktopWindow | 0 | 1 | 0 |

GetForegroundWindow | 2 | 4 | 2 |

GetShellWindow | 0 | 1 | 0 |

GetCapture | 0 | ? | ? |

GetClipboardOwner | 0 | ? | ? |

GetOpenClipboardWindow | 0 | ? | ? |

GetCurrentProcessId | 0 | 1 | 0 |

GetCurrentThreadId | 0 | 1 | 0 |

GetFocus | 0 | 1 | ? |

GetActiveWindow | 0 | ? | ? |

GetKBCodePage | 0 | ? | ? |

GetCursor | 0 | 2 | ? |

GetLastActivePopup | 0 | ? | ? |

GetProcessHeap | 0 | 2 | 0 |

GetQueueStatus | 0 | 2 | 0 |

GetInputState | 0 | ? | ? |

GetMessageTime | 0 | ? | ? |

GetOEMCP | 0 | ? | ? |

GetCursorInfo | 8 | 16 | 8 |

GetCaretPos | 0 | ? | ? |

GetThreadTimes | 4 | 8 | 0 |

GetProcessTimes | 4 | 8 | 0 |

GetProcessMemoryInfo | 4 | 8 | 0 |

QueryPerformanceCounter | 8 | 16 | 8 |

GlobalMemoryStatusEx | 4 | 8 | 0 |

EnumWindows | 128 | 256 | 128 |

Total: | 162 | 335 | 146 |

In total we have 146 bits, that are guaranteed to be inaccessible even

to a local attacker. That is not too much, but nevertheless, already

lies beyond the capabilities of attackers having modern day technology.

## Fast PRNG for generation of large volume of random numbers

The aforementioned RNG is designed to generate small amount of random

numbers with a large strength reserve. This scheme's efficiency,

however, is quite low and therefore it is unsuited for generation of

gigabytes of random numbers that are needed for the algorithms to

securely wipe disk sectors on encryption. For this purpose DiskCryptor

has the pseudorandom number generator that is built with the utmost

simplicity, but nonetheless its durability is based on the strength of

the AES.

Here in this scheme, the main RNG is used as the source of entropy, and

with its help a random AES key is generated on the first initialization

of the generator. Output of pseudorandom numbers is done by the process

of encryption, using this key, of sequentially incrementing 128 bit

counter. Statistical characteristics of output data are fully ensured by

the AES algorithm. On the completion of generator's work, the key is

destroyed, and it becomes impossible to distinguish an obtained data

from a random data. This scheme has the property of being simple and

sufficiently safe for its purpose.

## List of publications used

- Peter Gutmann, "Software Generation of Practically Strong Random

Numbers",

1998 - Elaine Barker, John Kelsey "NIST Special

Publication 800-90",

National Institute of Standards and Technology, March 2007 - John Kelsey, Bruce Schneier, David Wagner, Chris Hall,

"Cryptanalytic Attacks on Pseudorandom Number

Generators",

Springer-Verlag London, UK, 1998
